The modern dining room, with brick walls and framed art, features a steel-framed sliding barn door of frosted tempered glass.

Contemporary sliding barn door with steel frame and frosted tempered glass, featuring a central rectangular design.

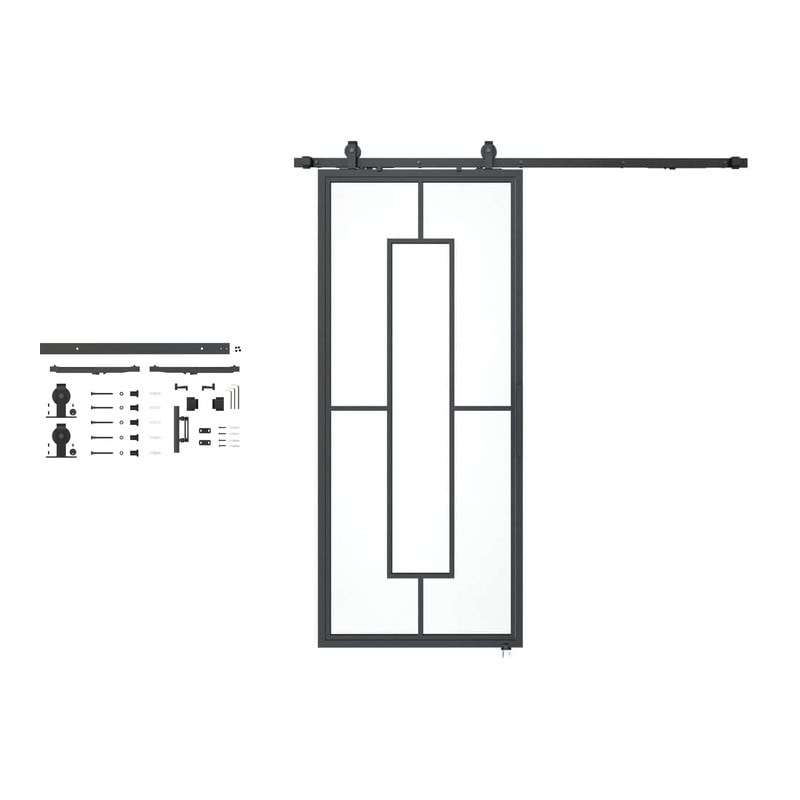

A barn door hardware kit for a Contemporary Steel Sliding Glass Door displays a rail, brackets, rollers, screws, and more on white.

A modern interior features a steel-framed sliding glass barn door with frosted glass, a wooden chest, and walls with inspirational quotes.

A room with a steel-framed sliding glass barn door, frosted glass, wall art, a wooden dresser, and a sideboard leads to a dining area.

A black-framed sliding glass barn door contrasts a wooden dresser and green cabinet, blending rustic charm with modern elegance.

A sleek black steel-framed sliding glass barn door with frosted glass enhances the space, complementing the tiled floor and dining area.

A modern black handle on a steel-framed sliding frosted glass barn door reveals a brick-walled room with a table, chairs, and art.

Close-up of the sliding glass barn door mechanism: metal track and roller on wall, supporting frosted tempered glass.

Contemporary Steel Framed Sliding Glass Barn Door with Frosted Tempered Glass

Model NO.:	TKM-B16
Ref. NO.:	151000-1783&150204-2781
Brief Descritpion:	Steel Framed Sliding Glass Barn Door with steel hardware kit
Position:	For interior door use
Application:	Both Residential and commercial use
Opening style:	Sliding opening
Main Material:	Carbon steel, Tempered glass
Surface Finish:	Black powder coating
Door size	2100x900mm or customized
Door Thickness	32mm
Glass thickness	5mm
Glass Pattern:	Frosted
Others:	Aluminum sliding system is optional

Details

Advantages:

Space Efficiency: Ideal for confined spaces, eliminating the need for swing space required by hinged doors.
Natural Light: Glass panels enhance natural light, creating a brighter atmosphere and visually merging indoor and outdoor spaces.
Versatility: Available in various designs and colors to complement different architectural styles; options for single, double, or multi-panel configurations.
Ease of Operation: Smooth-running tracks ensure minimal effort for opening and closing.
Maintenance: Easy to clean with non-corrosive properties, ensuring durability and longevity.

Specifications:

Main Material: Carbon steel and tempered glass
Surface Finish: Black powder coating
Door Size: 2100 x 900 mm (customizable)
Door Thickness: 32 mm
Glass Thickness: 5 mm
Glass Pattern: Frosted
Optional Feature: Aluminum sliding system available

Packaging Details:

Packing Method: Each door is packed in a cardboard box with shrink film; multiple doors on a plywood pallet; hardware in a separate box.
Sales Unit Packing Type: Carton
Sales Unit Packing Size: 2190 x 990 x 85 mm
Quantity per Pallet: 13 PCS/PLT
Pallet Size: 2250 x 1060 x 1250 mm
Loading Quantity: 100 PCS for 1x20GP and 250 PCS for 1x40GP

The TKM-B16 sliding glass barn door combines style, functionality, and practicality, making it an excellent choice for maximizing natural light and optimizing living spaces in both residential and commercial environments.

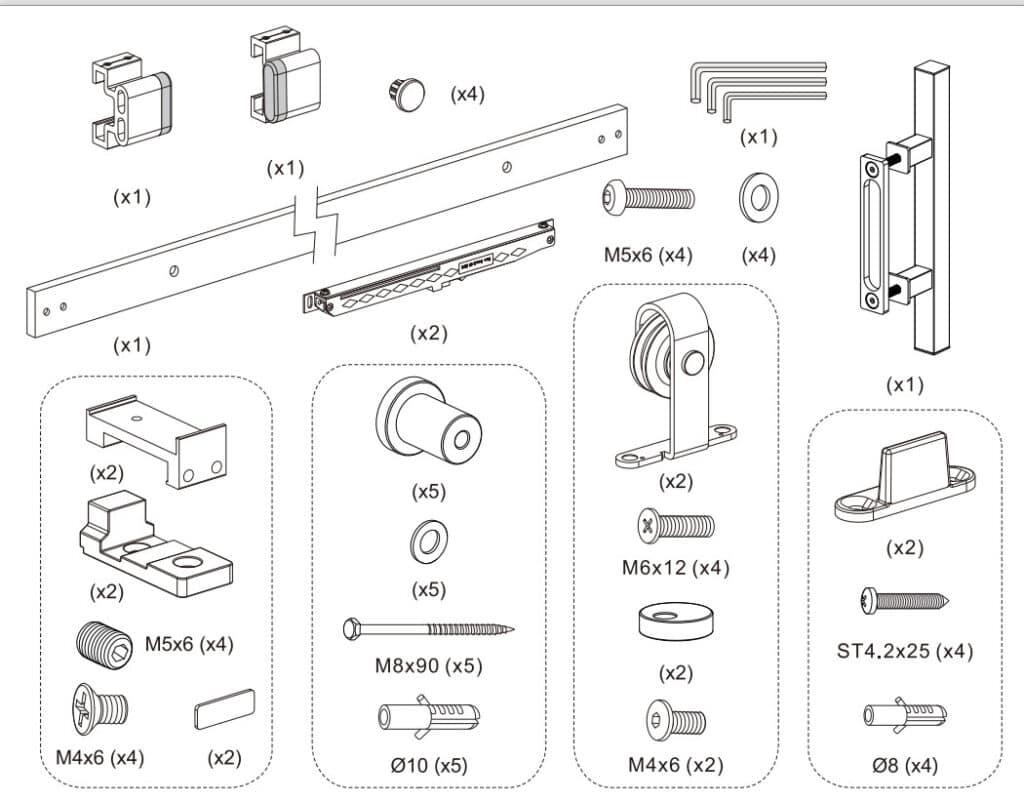

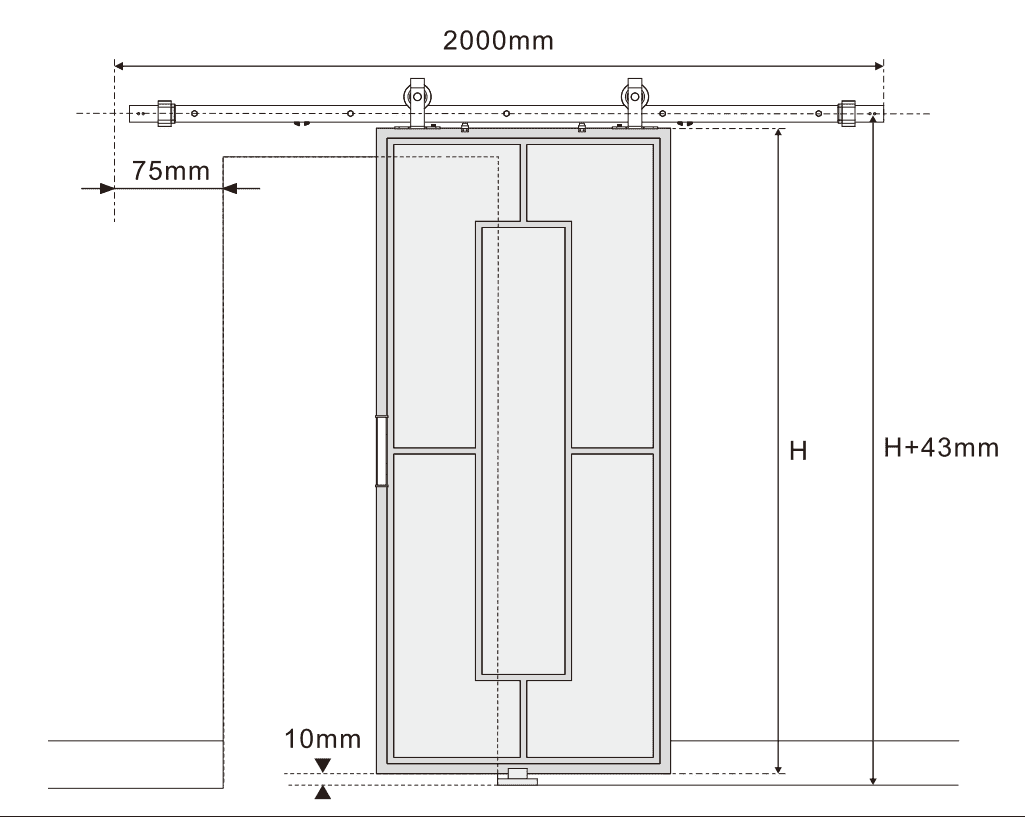

Technical drawing of a stylish steel-framed sliding glass barn door. Frosted glass, 2000mm width, 75mm clearance, 10mm floor gap, H+43mm height. Assembly guide for Contemporary Steel Sliding Glass Barn Door with frosted glass, including labeled parts, tools, and grouped components.
