Soft Closing Sliding Door with Stainless Steel Hardwares, Top Mounting

Model NO.: YMXT-YG14
Ref.NO.: 150101-5384&150900-1311
Brief Descritpion: Stainless steel top mounting sliding door with hardwares, include soft closing
Position: For interior door use
Application: For both residential & commercial
Main Material: Stainless steel, HPL door
Surface Finish: Brushed stainless steel
Rail Length: 1830mm(72inch), or to be customized
Max Loading: 80kg(176LBS) with soft closing
Working Cycles: 100000cycles
Door Type: HPL Wooden door
Door Size: 2057*915*45mm(81*36*1 3/4inch)
Features: Soft closing function could be optional

Details

This top-mounting sliding door system features high-quality stainless steel hardware and a sleek, contemporary design that seamlessly blends with any décor.

The standout feature of this sliding door is its soft-closing mechanism, ensuring a smooth, quiet, and controlled door movement. The soft-close function prevents the door from slamming shut, reducing noise and minimizing the risk of damage to the door or surrounding walls.

Crafted with precision, the TENGYU Soft Closing Sliding Door is built to last. The sturdy stainless steel hardware provides excellent durability and resistance to corrosion, ensuring long-lasting performance. The top-mounting design allows for easy installation and offers a clean, streamlined appearance.

The door panel is customizable to suit your specific needs and preferences. Choose from a variety of materials, such as tempered glass, wood, or MDF, to create a look that complements your interior design. The sliding mechanism accommodates door panels up to 80kg, making it suitable for a wide range of applications.

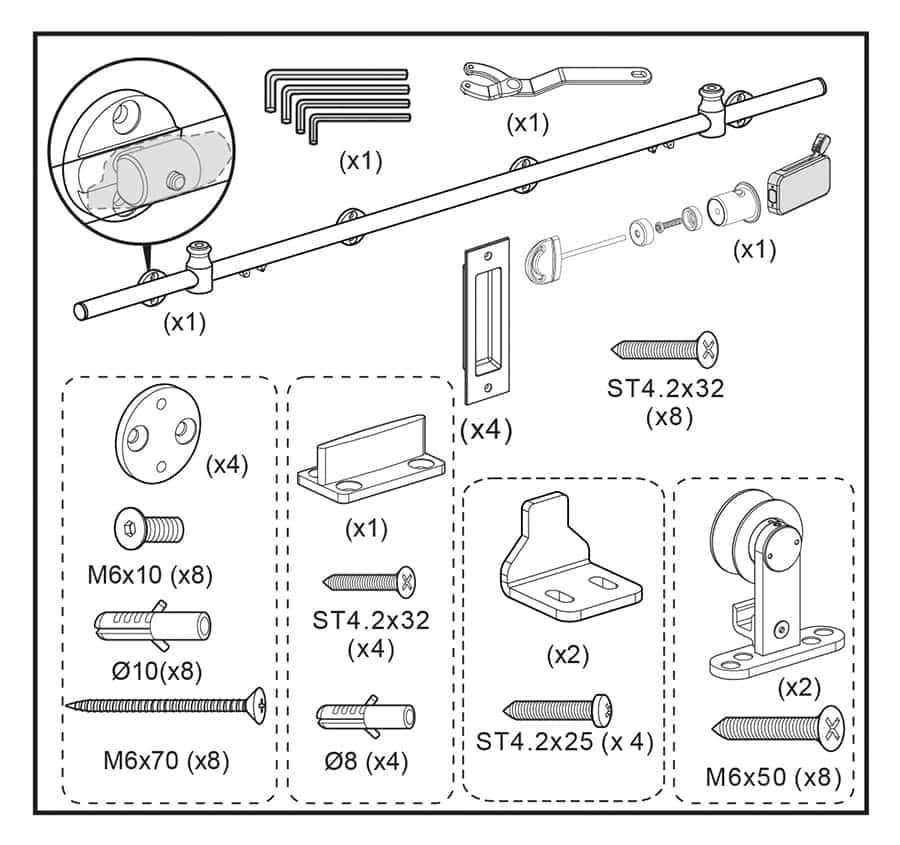

Illustration of a mechanical device in parts, labeled with details and sizes for screws, brackets, and a top-mounted soft-closing sliding door with stainless steel hardware.

Components List

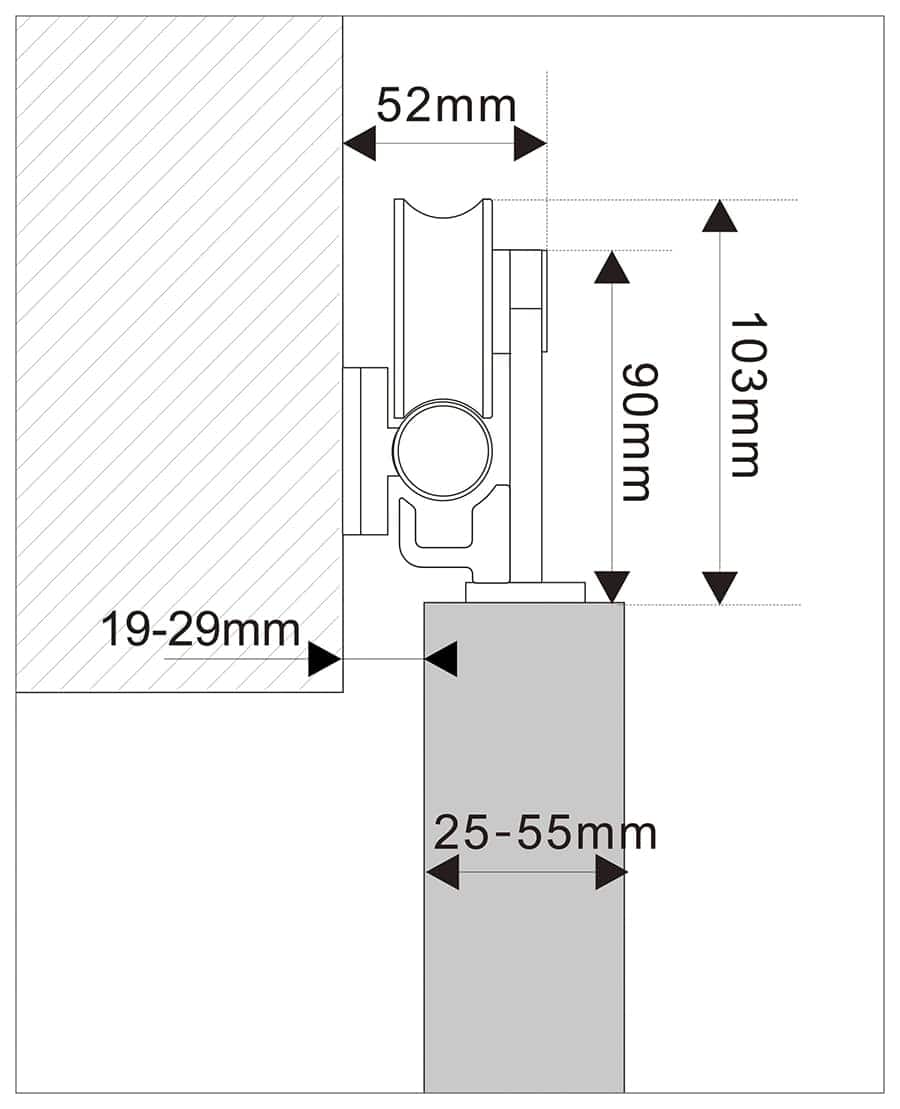

Technical schematic of a soft-close sliding door with stainless hardware, top-mounted, mm-detailed, cross-sections & adjustable indicators.

Product Dimensions


Product Package

Packing Method Components into boxes and a complete set into a carton, around 78 cartons into a wooden crate. one door will be into a carton with EPE package
Sales Unit Packing Type Carton
Hardware Sales Unit Packing Size 1860*145*70 mm
Door Sales Unit Packing Size 2120*975*65mm
QTY/Pallet(Hardware) 78/PLT
QTY/Pallet(Door) 28/PLT
Pallet Size(Hardware) 1970*1020*1120mm
Pallet Size(Door) 2200*1045*1960mm
Loading QTY 112sets/20GP, 280sets/40GP
