Sliding Door Track System, Top Mounting, for 1 in – 1 3/4 in Thick Doors

Presenting our top mounting style sliding door track system, specifically designed to cater to doors with thicknesses ranging from 1 inch to 1 3/4 inches.

Model NO.: YMXT-BG04
Ref.NO.: 150204-0259
Brief Description: Top mounting style sliding barn door system
Position: For interior door use
Application: Both residential and commercial use
Main Material: Carbon steel
Surface Finish: Black powder coating
Rail Profile Size: 40x6mm
Rail Length: 1830mm(72inch), 2000mm(78-3/4inch), 2134mm(84inch), 2438mm(96inch)
Max Loading: 100kg(220LBS)
Working Cycles: 100000cycles
For Door Type: Wooden doors, Metal frame doors
For Door Thickness: 25mm(1inch) to 45mm(1-3/4inch)
Soft Closing: Optional

Details

Our sliding door track system’s top-mount design means there’s no need to drill into the face of your door, keeping its original beauty intact.

Constructed from hard-wearing carbon steel, it is as sturdy as they come. Plus, with its sleek black powder coating, it looks classy and has an extra shield against wear and tear.

This sliding door track system comes with a 40x6mm rail profile and offers a choice of four different lengths, including1830mm(72inch), 2000mm(78-3/4inch), 2134mm(84inch), 2438mm(96inch), so you can find the perfect fit for your space.

The system plays nicely with wooden and metal frame doors, allowing you to use it wherever needed.

Built to handle up to 100kg(220LBS) and proven to last for a whopping 100,000 cycles, you can trust it will be a durable and reliable part of your interior for years to come.

Moreover, we know how annoying a noisy door can be. That’s why we offer an optional soft closing feature. It’ll ensure your doors slide smoothly and quietly along the track, making your space even more serene.

In a nutshell, our top mounting style sliding barn door hardware is a stylish and functional addition to any residential or commercial setting.

Why wait? Give your project a style upgrade with this sliding door track system today!

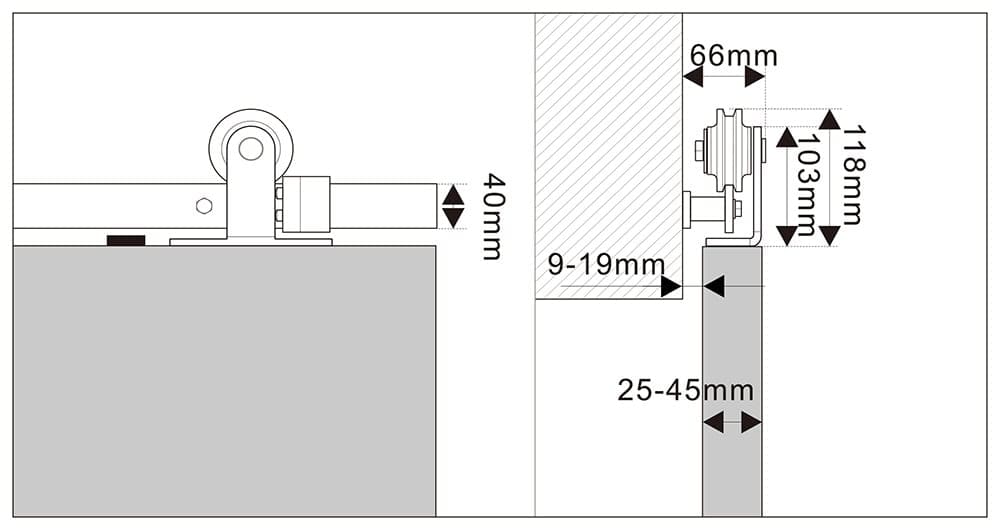

Dimension

Dimension

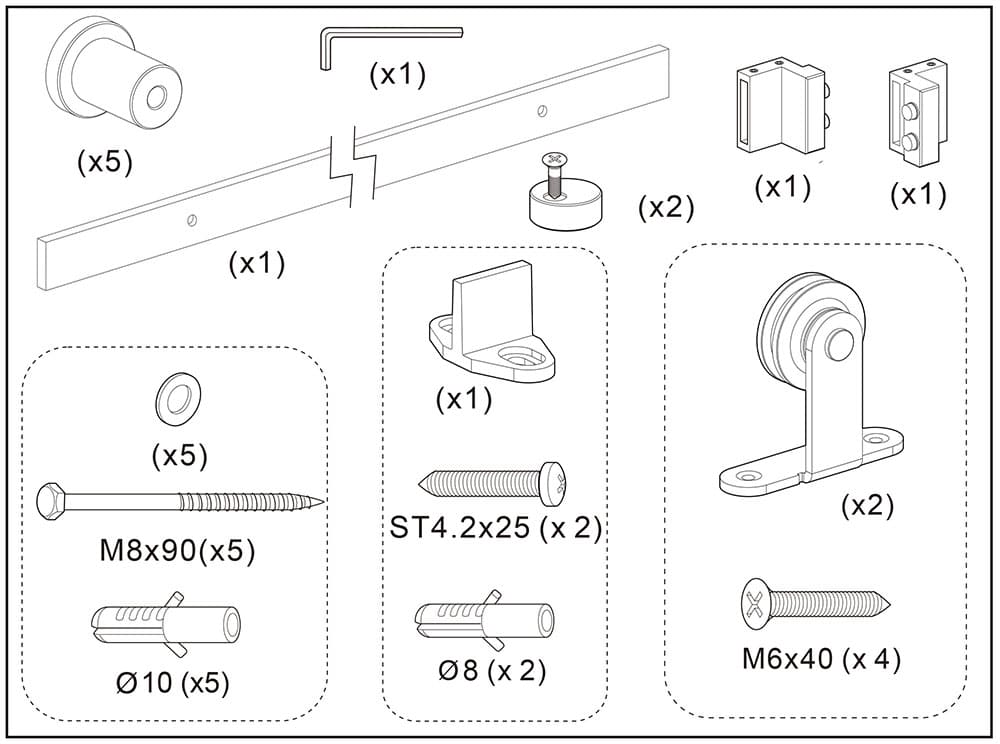

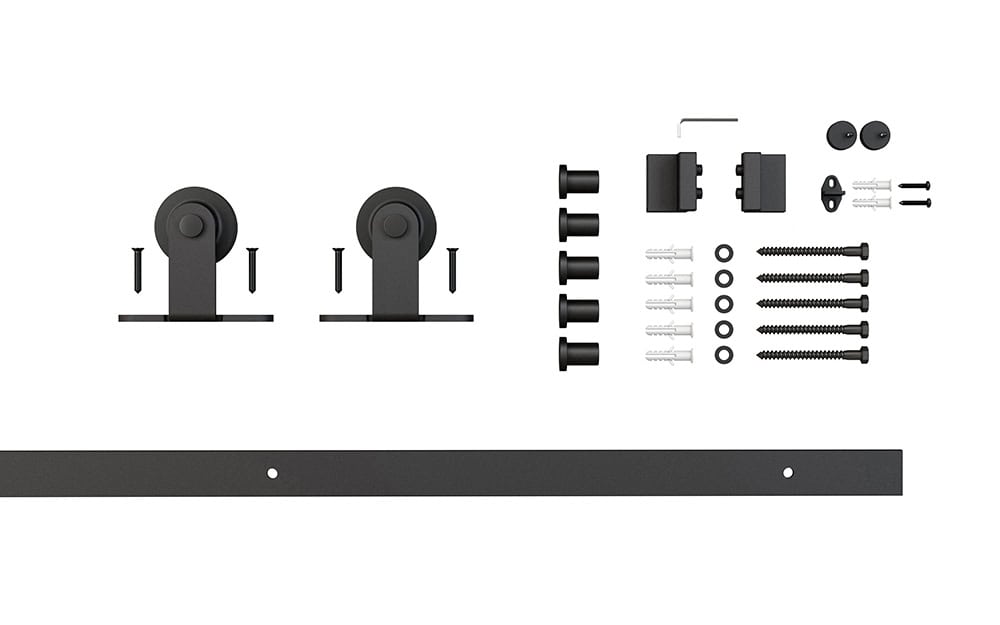

Part assembly

Part assembly

Part assembly


Product Package

Packing Method Components into boxes and a complete set into a carton, around 60sets cartons into a wooden crate.
Sales Unit Packing Type Carton
Sales Unit Packing Size 2040x155x75mm
QTY/Pallet 60sets/PLT
Pallet Size 213x90x108cm
Loading QTY 720sets for 1x20GP;1690sets for 1x40HQ
